TS15

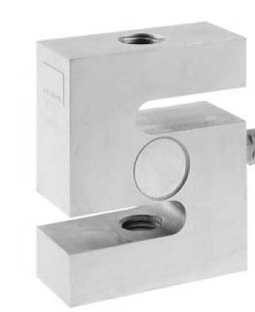

Alloy Steel Tension/Compression Load Cell
Features
- Capacity 1500-6000kg
- Alloy steel Construction
- IP67protection
- Vishay 619 Compatible

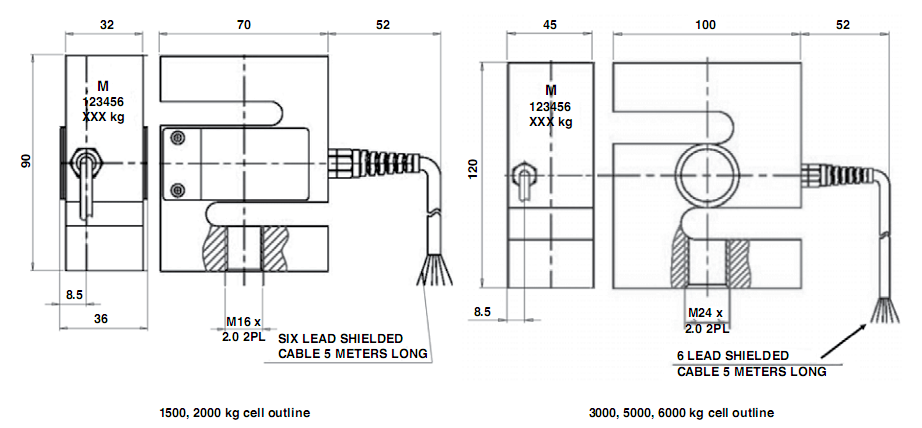

Outline Dimensions
Specifications
| PARAMETER | UNIT | VALUE | |
|---|---|---|---|
| True-Tec Grade | N | P | |
| Maximum Number of Intervals | 2000 | 3000 | |
| Rated capacity (E max) | kg | 1500, 2000, 3000, 5000, 6000 | |
| Sensitivity | mV/V | 2.00 | |
| Sensitivity tolerance | ± mV/V | 0.0020 | |
| Zero balance | ± mV/V | 0.20 | |
| Y=Emax/vmin | Typical | 4000 | 6000 |
| Z=Emax/(2*DR) | Typical | 2000 | 3000 |
| Nominal temperature range | °C | -10 to +40 | |
| Service temperature range | °C | -30 to +70 | |
| Limit load | % of R.C. | 150 | |
| Break load | % of R.C. | 300 | |
| Nominal excitation | V | 10 | |
| Max. excitation | V | 15 | |
| Input impedance | Ohm | 385 ± 15 | |
| Output impedance | Ohm | 350 ± 3 | |
| Insulation resistance | MOhm | > 2000 | |
| Compensation circuit type | Balanced Bridge | ||
| Cable length | m | 3.0 (for 1500,2000,3000kg),5.0 (for 5000,6000kg) | |
| Cable type | 6x26 AWG, Black PVC Jacket | ||
| Color code | +exc -green, +sen-blue, +sig-red, -exc-black, -sen-brown, -sig- white | ||
| Construction | Alloy Steel | ||
| Protection class to IEC529 | IP67 | ||
Applications
Model TS15 is a low cost tension compression load cell designed for industrial applications. Typical applications include weighing , process weighing, force measurement and industrial process weighing and so on.
The TS15 provides scale manufacturers with a high accuracy low cost sensor to meet today’s needs.
